Introduction
Polymerase chain reaction (PCR) plates are essential consumables in molecular biology laboratories, providing the physical platform for thermal cycling during DNA amplification. Although PCR plates may appear similar in shape and material, differences in well format, plate design, and dimensional consistency can have a direct impact on workflow efficiency, instrument compatibility, and experimental reliability.
Selecting the right PCR plate requires more than matching basic dimensions. Factors such as throughput requirements, automation compatibility, and handling preferences all play a role in determining the most suitable option. PCR plates are commonly used alongside other PCR consumables such as PCR tubes in routine PCR and qPCR workflows. Common choices include 96-well and 384-well PCR plates, as well as skirted and non-skirted designs. This guide outlines the key considerations behind these formats and helps laboratories choose PCR plates that align with their specific applications and operational needs.
What Is a PCR Plate?
A PCR plate is a multi-well laboratory consumable designed to hold reaction mixtures during polymerase chain reaction (PCR) amplification. It provides a uniform and thermally stable platform that allows samples to undergo repeated heating and cooling cycles inside a thermal cycler. PCR plates are typically manufactured from polypropylene to ensure chemical compatibility, mechanical stability, and consistent heat transfer across all wells.
Compared with individual PCR tubes, PCR plates enable higher-throughput workflows by allowing multiple reactions to be processed simultaneously under identical thermal conditions. This makes them widely used in applications such as routine PCR, quantitative PCR (qPCR), genotyping, and other nucleic acid amplification techniques. The standardized footprint of PCR plates also allows compatibility with common laboratory equipment, including thermal cyclers, plate sealers, centrifuges, and automated liquid handling systems.
While the basic function of a PCR plate is straightforward, variations in well number, plate geometry, and design features can influence how efficiently reactions are performed and handled. Differences in well volume, plate height, and edge structure affect factors such as evaporation control, sealing performance, and instrument fit. As a result, understanding what defines a PCR plate goes beyond its appearance and involves considering how its design supports specific laboratory workflows and experimental requirements.
Key Factors to Consider When Choosing a PCR Plate
| Feature | 96-Well PCR Plate | 384-Well PCR Plate |
|---|---|---|
| Typical throughput | Low to medium | High |
| Reaction volume | Larger volume range | Lower volume range |
| Pipetting method | Manual or automated | Typically automated |
| Reagent consumption | Higher per reaction | Lower per reaction |
| Handling complexity | Easier | More demanding |
| Common applications | Routine PCR, assay development | High-throughput PCR, screening |
Selecting an appropriate PCR plate involves evaluating several practical factors that directly influence experimental performance, workflow efficiency, and equipment compatibility. While many PCR plates share a similar overall appearance, differences in format, design, and specifications can result in meaningful variations during routine laboratory use. Laboratories selecting PCR plates for regular workflows should consider how these factors align with both experimental needs and instrument requirements.
Number of Wells: 96-Well vs 384-Well PCR Plates
The number of wells determines throughput and handling complexity. 96-well PCR plates are the most commonly used format and are well suited for routine PCR workflows, assay development, and laboratories prioritizing flexibility and ease of manual pipetting. In contrast, 384-well PCR plates are designed for high-throughput applications, enabling a larger number of reactions to be run simultaneously while reducing reagent volumes. However, the smaller well size requires greater precision in liquid handling and is often paired with automated systems.

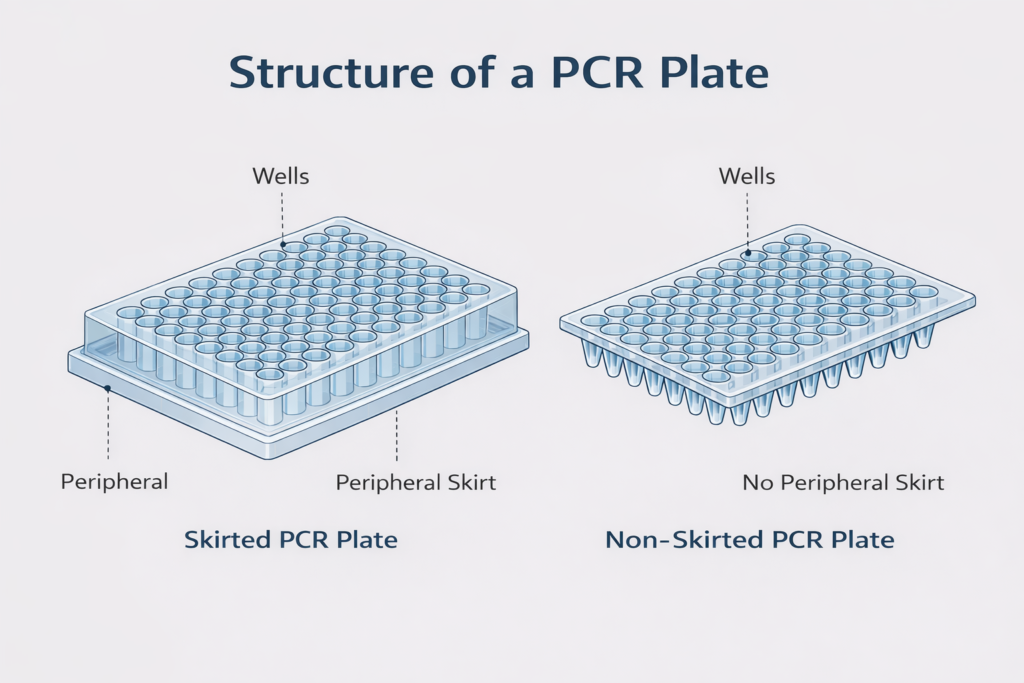

Skirted vs Non-Skirted PCR Plates
| Feature | Skirted PCR Plate | Non-Skirted PCR Plate |
|---|---|---|
| Plate rigidity | Higher | Lower |
| Automation compatibility | Well suited | Instrument-dependent |
| Alignment stability | More stable | Requires careful handling |
| Instrument fit | Standard footprint | May fit specific cyclers |
| Typical use | Automated workflows, core labs | Manual workflows, specific instruments |
Plate skirt design affects stability and instrument compatibility. Skirted PCR plates include a full peripheral frame that improves rigidity and alignment, making them suitable for automated workflows and robotic handling. Non-skirted PCR plates have a reduced edge profile, which can improve compatibility with certain thermal cyclers and plate sealers but may require careful handling to maintain alignment during setup.
Well Volume and Plate Height
Well volume should match the intended reaction volume while providing sufficient headspace to minimize evaporation during thermal cycling. Plate height and overall dimensions are equally important, as small variations can affect compatibility with thermal cyclers, centrifuges, and sealing devices. Selecting PCR plates with consistent dimensions helps ensure reliable lid contact and uniform heat transfer across all wells.
Material and Optical Properties
Most PCR plates are manufactured from polypropylene due to its thermal stability and chemical resistance. Optical characteristics, such as clear or frosted wells, can influence signal detection in fluorescence-based assays like qPCR. Choosing the appropriate optical properties ensures compatibility with detection methods without introducing unnecessary background interference.
Thermal Cycler Compatibility
Even standardized PCR plates may perform differently across instruments. Factors such as plate rigidity, flatness, and well uniformity influence heat distribution and lid pressure during cycling. Verifying compatibility with the intended thermal cycler model helps prevent issues such as uneven amplification or sealing failure.
By considering these factors together, laboratories can select PCR plates that not only fit their equipment but also support reliable, reproducible results across different experimental workflows.
Common PCR Plate Formats and Typical Use Cases in the Lab
PCR plates are available in several standard formats, each designed to support specific experimental needs and laboratory workflows. Understanding how these formats are typically used helps laboratories match plate design to application requirements rather than relying solely on general specifications.

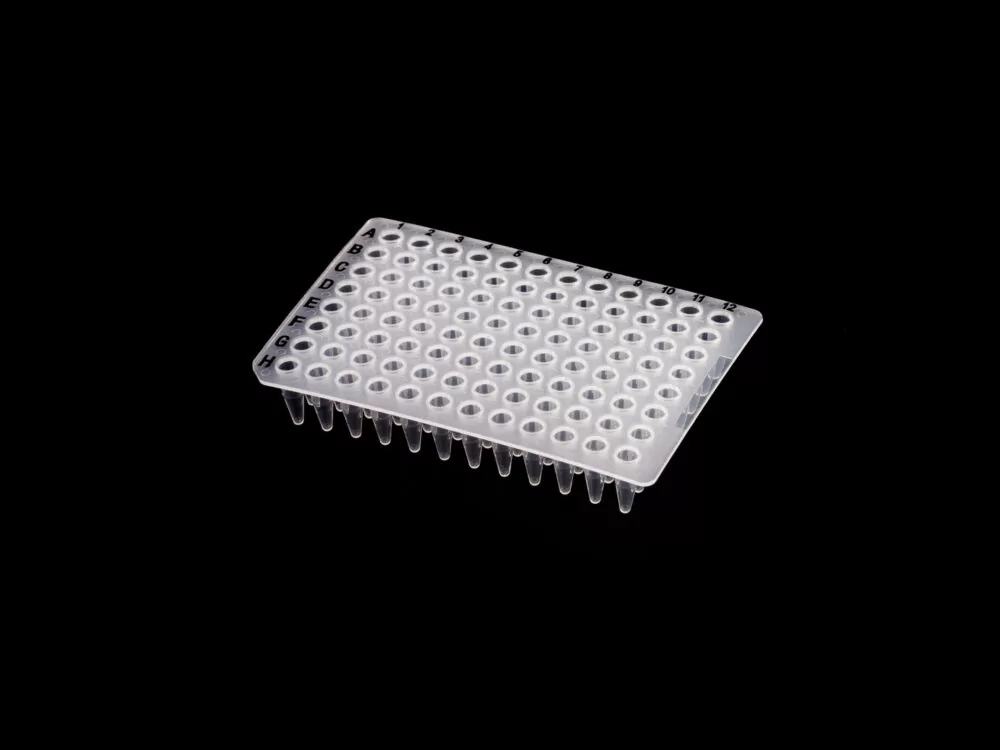

96-well PCR plates are the most widely adopted format in molecular biology laboratories. They are commonly used for routine PCR, assay optimization, and low- to medium-throughput workflows. The larger well volume allows for flexible reaction setups and easier manual pipetting, making this format well suited for research laboratories, teaching labs, and environments where automation is limited.
384-well PCR plates are primarily used in high-throughput applications where reaction density and reagent efficiency are critical. These plates enable a significantly higher number of reactions to be processed in parallel while reducing per-reaction volumes. As a result, they are often paired with automated liquid handling systems and are commonly used in screening assays, large-scale genotyping, and quantitative PCR workflows requiring consistent, high-volume data output.
Skirted PCR plates are frequently selected for workflows involving automation or robotic handling. The full peripheral skirt improves plate rigidity and alignment, which supports consistent positioning in thermal cyclers, plate sealers, and liquid handling platforms. This format is often preferred in core facilities and production-oriented laboratories where repeatability and mechanical stability are essential.
Non-skirted PCR plates are commonly used in applications that require compatibility with specific thermal cycler designs or reduced plate height. Their compact edge profile can improve fit in certain instruments and simplify sealing, but they may require more careful handling during manual setup. These plates are often chosen for instrument-specific workflows or laboratories with established handling protocols.
By aligning PCR plate format with experimental scale, handling method, and equipment requirements, laboratories can improve workflow efficiency while minimizing setup errors and compatibility issues.
Sealing and Handling Considerations for PCR Plates
Proper sealing and handling are critical to maintaining reaction integrity during PCR thermal cycling. Inadequate sealing can lead to evaporation, sample cross-contamination, or inconsistent amplification, particularly in high-cycle or low-volume reactions. For this reason, sealing method selection should be considered alongside PCR plate format rather than as an afterthought.
PCR plates are commonly sealed using adhesive films, optically clear seals, or heat-sealing films, depending on application requirements. Adhesive films are widely used for routine PCR workflows due to their convenience and ease of removal, while optically clear seals are preferred for fluorescence-based assays such as qPCR. In applications where evaporation control is critical, PCR plate sealing films are commonly used to maintain consistent reaction volumes during thermal cycling. Heat-sealing films provide a more permanent seal and are often selected for high-throughput or long-run workflows.
Handling practices also influence performance, especially for plates with reduced structural support. Non-skirted PCR plates, while compatible with many instruments, may be more susceptible to flexing during manual handling. Careful alignment during sealing and transport helps maintain uniform well contact and consistent thermal transfer. Skirted PCR plates generally offer improved rigidity, which can simplify handling in automated systems and reduce the risk of misalignment.
Centrifugation prior to thermal cycling is another common handling step used to collect reaction mixtures at the bottom of wells and remove air bubbles. PCR plates should be compatible with standard plate centrifuges, and sealing materials should withstand brief centrifugal forces without peeling or distortion.
By selecting appropriate sealing methods and following consistent handling practices, laboratories can reduce variability introduced by evaporation or mechanical stress, ensuring that PCR plates perform reliably across different experimental conditions and workflows.
Practical Tips for Selecting PCR Plates in the Lab
In practice, selecting PCR plates often involves balancing technical requirements with workflow constraints. A few practical considerations can help laboratories avoid common issues and make more consistent choices across different experiments and teams.
First, align the PCR plate format with the dominant workflow in the lab. For laboratories running a mix of assays at varying scales, maintaining a primary standard—such as a 96-well PCR plate for routine work—can simplify inventory management and reduce handling errors. High-throughput formats, such as 384-well plates, are best reserved for workflows where automation and reagent efficiency are clearly established.
Second, confirm instrument compatibility before committing to large purchases. Even minor differences in plate height, rigidity, or well geometry can affect performance in certain thermal cyclers or sealing systems. Testing a small batch of PCR plates under real operating conditions helps identify potential fit or sealing issues early.
Third, consider handling practices and user experience. Plates that perform well in automated systems may behave differently during manual pipetting or transport. For teams with frequent staff rotation or shared workspaces, selecting PCR plates with better rigidity and alignment tolerance can reduce variability introduced by handling technique.
Finally, standardize sealing and storage practices alongside plate selection. Using consistent sealing methods and storage conditions across experiments helps ensure reproducibility and minimizes evaporation-related variability, particularly in low-volume reactions.
By incorporating these practical considerations into plate selection decisions, laboratories can move beyond basic specifications and choose PCR plates that integrate smoothly into daily workflows while supporting reliable and reproducible results.
Conclusion: Choosing the Right PCR Plate Starts with Your Application
Selecting a PCR plate is not simply a matter of matching dimensions or well count. Plate format, design features, sealing compatibility, and handling characteristics all influence how reliably reactions perform within a given workflow. Differences between 96-well and 384-well plates, as well as skirted and non-skirted designs, reflect trade-offs between throughput, ease of handling, and instrument compatibility rather than clear advantages of one format over another.
For this reason, the most suitable PCR plate is the one that aligns with the specific application, equipment setup, and operational practices of the laboratory. Similar selection principles also apply to other laboratory consumables used in molecular workflows, such as centrifuge tubes, where material, format, and handling considerations can influence downstream performance. Evaluating these factors together helps reduce variability, improve workflow efficiency, and support consistent experimental outcomes. By approaching PCR plate selection as a workflow decision rather than a purely technical specification, laboratories can make more informed choices that remain effective as experimental demands evolve.
Frequently Asked Questions About PCR Plates (FAQs)
What is the difference between a 96-well and a 384-well PCR plate?
The primary difference lies in throughput and reaction volume. A 96-well PCR plate is suitable for routine and low- to medium-throughput workflows, offering easier manual handling and greater flexibility. A 384-well PCR plate supports higher throughput and reduced reagent volumes but typically requires more precise liquid handling and is often used with automated systems.
Are non-skirted PCR plates compatible with all thermal cyclers?
Non-skirted PCR plates are compatible with many thermal cyclers, but not all instruments are designed to accommodate reduced plate edges. Compatibility depends on factors such as plate height, alignment features, and heated lid design. It is recommended to verify instrument compatibility before routine use.
Do PCR plates require special sealing during thermal cycling?
Yes. Proper sealing is essential to prevent evaporation, cross-contamination, and volume loss during repeated heating cycles. Common sealing options include adhesive films, optically clear seals for fluorescence-based assays, and heat-sealing films for high-throughput or long-run applications.
Can the same PCR plate be used for both standard PCR and qPCR?
In some cases, yes, but optical properties become critical for qPCR. Plates used for qPCR typically require clear, optically uniform wells to support accurate fluorescence detection. Standard PCR plates without suitable optical characteristics may not perform reliably in qPCR applications.
